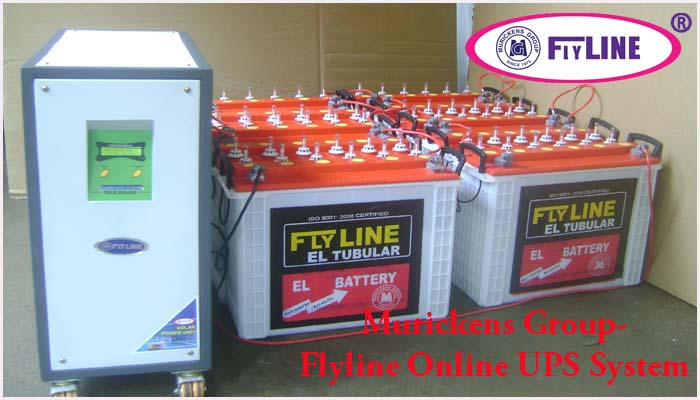

FLYLINE ONLINE UPS
Our exhaustive experience in Power Electronics domain has resulted in the development of feature rich products. Product design team at MG industry is equipped with the hardware knowledge, and component & Interface Knowledge, which are the necessary tools for designing of product. Our team designs products effectively and economically to meet the price, aesthetics & feature requirements of our customers.The On-line UPS provides the highest level of power protection for the electronic products. It is an uninterrupted pure sine wave and constant out put power supply with different capacity and advanced features
FLYLINE ONLINE UPS FEATURES
► Low power consumption. ► Audio and Visual indicators. ► Low and High Battery charging cut off. ► By using recommended battery we get constant voltage output. ► Output 240V to 415V. ► Input voltage 180V to 390V. ► Fully automatic. ► Compact in size. ► Low maintenance - Long durability. ► The number of Batteries required, depends upon capacity of the UPS.
TECHNICAL FEATURES OF ONLINE UPS | |||||||||
Sl. No. | Parameter | Single Phase Unit | Three Phase Unit | ||||||
1 | Rating | 1 KVA to 15 KVA | 6 KVA to 100 KVA | ||||||
2 | Battery Volt /KVA | 1KVA-36V | 2KVA- 72V | 3KVA- 72V | 5KVA- 192V | 7KVA- 192V | 10KVA- 240V | 12KVA- 240V | 15KVA- 240V |
3 | Special Sine Wave Model | 1KVA- 12V | 1.3KVA-24V | 2KVA- 24V | 3KVA- 48V | Nil | |||
4 | Input Voltage Range | 190 V -270 V | 375-450V | ||||||
5 | Nominal Output Voltage | 240V | 415V | ||||||
6 | Output Voltage Accuracy | ± 1% | ± 3% | ||||||
7 | Output Frequency | 50 Hz: ± 1% | 50 Hz: ± 1% | ||||||
8 | Input Frequency | 45-55 Hz | 45-55 Hz | ||||||
9 | Power Factory | -0.8 lagging to unity | |||||||
10 | Voltage Correction Rate 1. Air Cooled 2. Oil Cooled |
Voltage Correction | |||||||
35V/Sec. | 35V/ Sec | ||||||||
35V/ Sec | 35V/ Sec | ||||||||
11 | Efficiency | 90% | 90% | ||||||
12 | Control | Digital/Analogue | Digital/Analogue | ||||||
13 | Winding | Cooper wind | |||||||
14 | Noise | Low noise <50db | |||||||
15 | Heat | above 50 degree | |||||||
16 | Wave form | Pure sine wave | |||||||
17 | Mounting | Free on wheel | |||||||
Compact in size | |||||||||
Can work on Generators | |||||||||
18 | Transient response | For step load change of 0% to 100% and 100% to 0% | |||||||
Output remains within +/- 5% and recovers within 5 m secs. | |||||||||
